1. Introduction

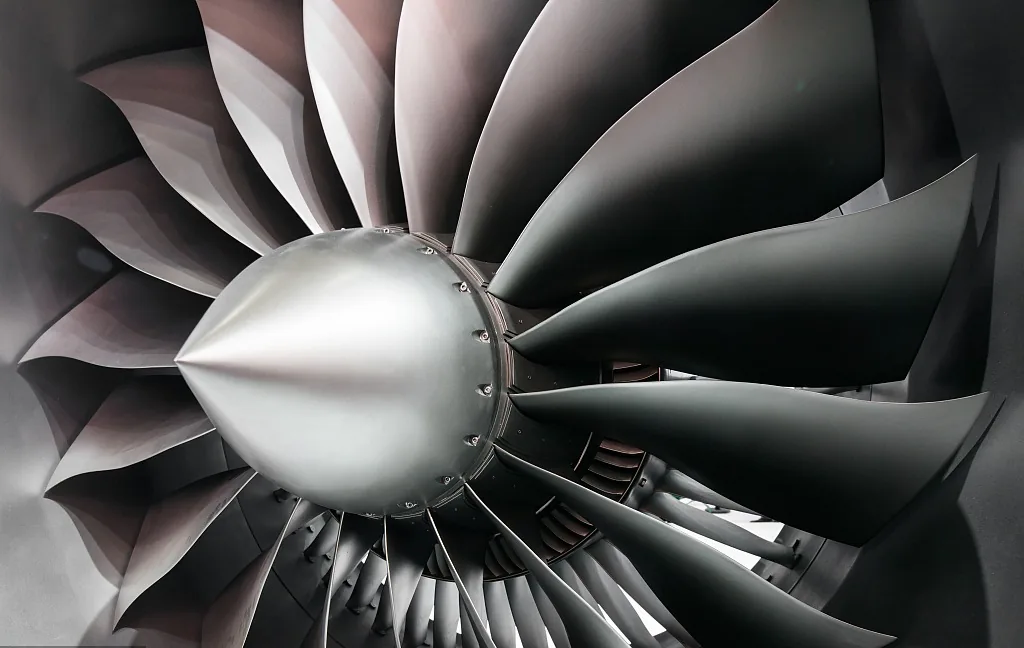

Turbine entry temperatures in modern aero engines exceed the melting range of the oldest nickel alloys by several hundred kelvin. This performance gap is bridged not by cooling alone but by a thin, adherent, thermally grown oxide: chromia, Cr2O3. The gas path of a modern engine exposes blades and vanes to oxidising combustion gases at surface temperatures commonly above 950 °C, while discs must retain strength and low-cycle fatigue life at 600–750 °C. In both classes of component, chromium is the element that makes long service life possible.

Classic references establish the framework. Sims, Stoloff and Hagel's Superalloys II (1987) describes the development of the cast and wrought alloy families, and Reed's textbook (2006) provides a modern treatment of alloy chemistry and processing. The present article concentrates on what chromium does, and on what the melt shop needs from the chromium metal it buys.

2. The protective Cr2O3 film

When a nickel–chromium alloy is heated in air, oxygen reacts preferentially with chromium rather than with nickel because the free energy of formation of Cr2O3 is far more negative than that of NiO. Above a critical chromium concentration — approximately 20 wt% in binary Ni–Cr at 1000 °C, lower in ternary systems — a continuous external chromia scale forms and suppresses nickel oxidation almost completely (Wallwork and Hed, 1971). The film grows by outward diffusion of chromium cations and inward diffusion of oxygen along grain boundaries of the oxide, giving the familiar parabolic kinetics: weight gain rises with the square root of time, and the scale thickens slowly, typically a few micrometres per thousand hours.

Chromia is a p-type semiconductor; cation transport dominates its growth. This matters in practice: dopants and impurities that alter its defect structure change the oxidation rate, and spalling resistance depends on the mechanical integrity of the scale and its adhesion to the alloy. The chromium-depleted zone that develops in the alloy just beneath the scale is also important: if the scale is lost, the alloy must re-form it quickly from its chromium reservoir, which is why the chromium level of the alloy is specified with a lower limit, never merely as a nominal value.

3. Beyond oxidation: chromium's other roles

Chromium is far more than an oxidation alloying addition. In solid solution it hardens the gamma matrix substantially — one of the reasons wrought alloys such as Inconel 718 (19 wt% Cr) and Waspaloy (19.5 wt% Cr) reach their strength levels. Chromium also shifts the solidification path and affects the precipitation of topologically close-packed (TCP) phases: excessive chromium promotes sigma-phase formation during long exposure in the 700–900 °C range, embrittling the alloy, which is why chromium content is bounded from above as well as below.

Chromium also interacts with the other critical additions. It stabilises the protective behaviour of aluminium-rich alloys: in Ni–Cr–Al systems, chromium enables a continuous Al2O3 scale to form at aluminium levels far below those required in binary Ni–Al, the classic third-element effect established by Giggins and Pettit (1971). Every modern blade coating and most blade alloys exploit this synergy.

4. Representative chromium-bearing engine alloys

• Wrought disc alloys — Inconel 718 (19 Cr), Waspaloy (19.5 Cr), Udimet 720 (16 Cr), Rene 88 (16 Cr). Chromium here supports oxidation resistance at 650–750 °C while balancing gamma-double-prime and gamma-prime precipitation.
• Cast blade alloys — MAR-M 247 (8.4 Cr), CM247LC (8 Cr), Rene N5 (7 Cr). Lower chromium, compensated by higher aluminium and coatings, is used where creep strength at 1050–1150 °C is decisive.
• Sheet alloys for combustors and casings — Hastelloy X (22 Cr), Nimonic 75 (20 Cr), Inconel 625 (21.5 Cr), where oxidation and hot-gas corrosion dominate the design.

The chromium content therefore encodes a trade-off: 18–22 wt% where oxidation rules, 7–10 wt% where creep rules and coatings carry the oxidation burden. The chromium metal supplied for these alloys must be pure enough that its own impurities do not disturb either regime.

5. Raw-material quality: what the melt shop needs

Superalloy producers buy chromium metal as aluminothermic block or as refined powder and crush it for the charge. The specification essentials are:

• Gas impurities — nitrogen, oxygen and hydrogen must be minimal because superalloy melts are vacuum-treated precisely to control gas contents; every point of gas in the chromium is a point the melt shop must remove at cost.
• Tramp elements — lead, bismuth, tin, antimony and arsenic attack grain boundaries; they are restricted to parts per million because they cause hot shortness and embrittlement.
• Sulphur — restricted because it forms low-melting films; superalloy practice keeps sulphur in the tens of ppm.
• Silicon, aluminium, iron — controlled because they alter phase stability and scale chemistry.

The chromium content itself is specified as a minimum, and the reporting practice matters. Aluminothermic chromium is produced by reducing chromium oxide green with aluminium powder: the metal inevitably carries residual aluminium and silicon as a matter of process chemistry, iron picked up from raw materials and handling, and traces of copper, phosphorus and the low-melting tramp metals. The sixteen-element certificate used in the trade therefore groups the specification into a metal index, covering chromium, iron, silicon, aluminium, copper, phosphorus and the tramp elements, and a gas index covering carbon, sulphur, nitrogen, hydrogen and oxygen, each with a stated maximum. A melt-shop buyer reads the certificate as a promise: every element must hold below its maximum after the supplier's own remelting analysis, because the alloy made from the charge inherits every impurity the chromium brings.

For powder charging, particle size is a melting parameter as much as a handling property: fine powder dissolves quickly but oxidises during storage, while coarse granules survive handling but dissolve slowly in the melt; the 40–425 μm window used for the ACMP series balances dissolution rate against oxidation. Vacuum-degassed chromium extends the same logic to the gas elements: oxygen and nitrogen removed at the chromium producer's vacuum station are oxygen and nitrogen the melt shop does not have to remove at furnace cost, which is why degassed grades are specified wherever gas-sensitive alloys are melted.

This is why the ACM block series on this site specifies sixteen elements per grade and why vacuum-degassed VGDC chromium exists: deoxidation and denitrification of aluminothermic briquettes deliver dense, low-gas chromium that shortens the vacuum treatment cycle in the melt shop.

The tramp elements deserve one further word, because their harm is not proportional to their quantity. Lead, bismuth and tellurium segregate to grain boundaries at concentrations of a few parts per million and liquate during forging or service at high temperature, opening the boundaries that the alloy's entire microstructure exists to keep closed; a single heat contaminated at the charge stage is ruined before it is poured, and the contamination is traceable, through the melt shop's own remelt analysis, to the certificate of the chromium that carried it. This is why the superalloy industry's specification discipline is copied, almost verbatim, by every other high-value chromium market: the sixteen-element table is not bureaucracy, it is the codified memory of expensive failures.

6. A short history: from Nichrome to single crystals

Chromium entered high-temperature engineering through the resistance-heating alloys. Nichrome, developed by Albert Marsh around 1905, demonstrated that a nickel alloy containing roughly 20 wt% chromium could remain bright and unoxidised at red heat where pure nickel blackened in hours. The significance was understood quickly: chromium, not nickel, carried the oxidation protection, and the chromium content of a heat-resisting alloy was its most important single property. The early jet engine programmes confirmed the same lesson under far more demanding conditions. Whittle's engines and the British wartime effort produced the Nimonic series, beginning with Nimonic 75, a simple Ni–20Cr alloy whose chief virtue was the chromia film that protected flame tubes and early turbine blades; Nimonic 80 added aluminium and titanium for precipitation strengthening and became the first widely used wrought blade alloy.

The following two decades were a systematic exploration of how much chromium an alloy could carry while remaining strong. Inconel 718, introduced in the early 1960s, combined 19 wt% Cr with a niobium-based precipitation system and became the most produced superalloy in history, because its chromium level balanced oxidation resistance against hot workability and weldability. Cast alloys followed a different path: investment-cast polycrystalline blades of the 1960s and 1970s, such as IN-100 and MAR-M 200, deliberately reduced chromium toward 9–10 wt% to raise the gamma-prime solvus and the creep strength, compensating with aluminium and, later, coatings. The directionally solidified and single-crystal generations that followed pushed the logic to its conclusion: modern single crystals contain as little as 6–7 wt% Cr, rely on aluminide and platinum-aluminide coatings and thermal barrier coatings for oxidation, and use their chromium almost entirely as a healing reservoir beneath the coating system.

The historical arc therefore describes a trade-off that defines the entire field. Where oxidation resistance is the design constraint — combustor liners, casings, sheet components, disc rims — chromium remains at 18–25 wt%. Where creep strength at the maximum possible temperature is the constraint — the hottest rotating blades — chromium falls to single digits and coatings carry the burden. Every modern engine contains both regimes simultaneously, which is why engine manufacturers consume chromium-bearing alloys across the full composition range, and why the chromium metal supplier's specification book must serve both.

7. Chromium in the melt shop: charge, recovery and sampling

Superalloy ingots are produced by vacuum induction melting (VIM), often followed by electroslag remelting (ESR) or vacuum arc remelting (VAR) for cleanliness and structure. The chromium enters at the VIM stage, as aluminothermic block, as crushed block, or as refined powder, charged together with nickel, cobalt, refractory scrap and reactive elements. How the chromium is charged is itself a technology: block must be broken to controlled sizes so that it dissolves completely and predictably in the melt without entraining refractory or bridging the furnace; powder dissolves faster but oxidises more readily in storage, so its oxygen content must be certified low. Charge materials with low gas contents shorten the vacuum treatment cycle directly, which is the economic argument for vacuum-degassed VGDC chromium: oxygen and nitrogen removed at the chromium producer's vacuum station do not need to be removed again, slowly and expensively, in the melt shop's furnace.

Chromium recovery through VIM is high but not perfect, and the melt is sampled and adjusted before tapping: spectrographic samples are taken, the chromium is trimmed to the aim point, and only then is the heat released for casting. This is why superalloy buyers treat the chromium supplier's certificate as the first link of their own quality chain. The certificate must report not only chromium and the principal metals but the full tramp and gas package — the sixteen-element tables published for the ACM series on this site are organised exactly the way a melt-shop chemist reads them — and the values must be honest enough to stand against the melt shop's own remelting analysis, because a discrepancy discovered at tap time stops a heat and costs days. The method-of-difference practice for chromium, stipulated in GB/T 4702 testing, makes the certificate's impurity accuracy the true measure of chromium purity: the chromium figure is only as trustworthy as the sum it is calculated from.

8. Outlook

As engines push toward ever higher turbine entry temperatures, alloy designers trim chromium to gain creep strength and rely on coatings — but the coatings themselves are aluminium- and chromium-rich reservoirs, and the alloy beneath still needs enough chromium to heal a damaged scale. Chromium will remain the first line of defence in aero engines; the market question is whether the chromium arrives at the melt shop clean enough. That is a raw-material story, and it is written in specifications like the ones published above.
